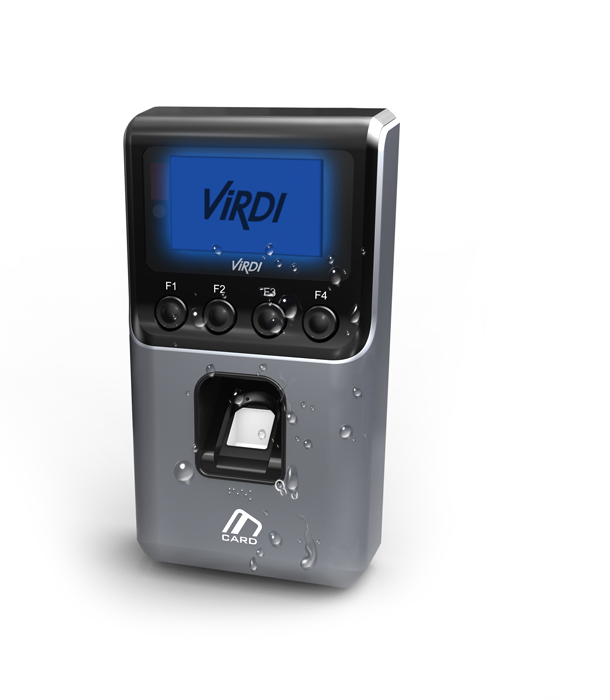

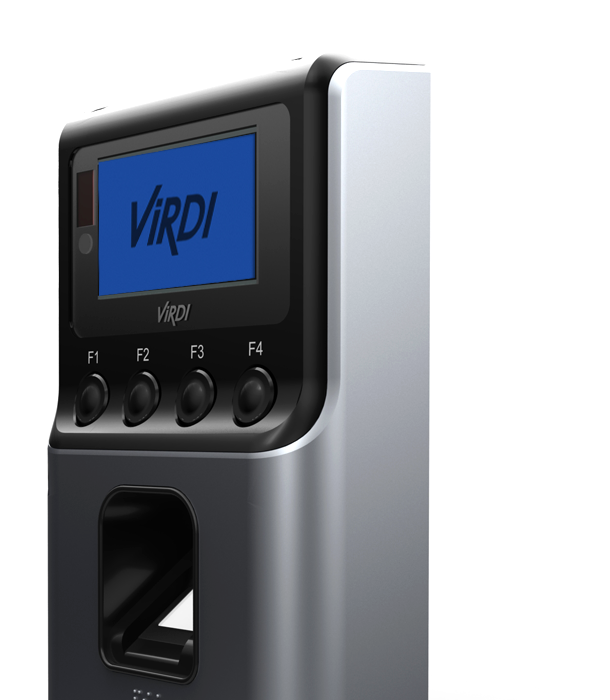

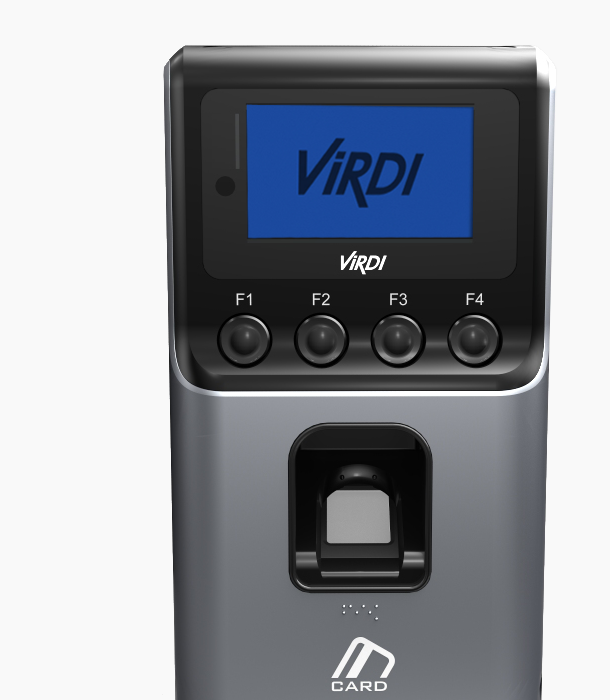

AC-2100

Fingerprint Authentication Device
Upgraded new-generation technology,
convenience, and design with LCD, LED, and
adjacent sensor technology.

Dustproof / Waterproof

IP65 level of Dustproof / Waterproof structure
IPX3 rating the international waterproofing standard!
It can be installed in virtually any location.
AC-2100
AC-2100

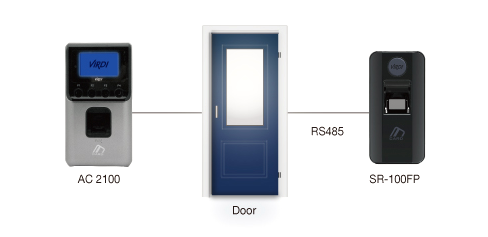

Local Anti-passback

Supporting anti-passback function
with a slave reader(SR-100FP)

USB Memory

Download users and transaction logs
using a USB Memory Stick
AC-2100
AC-2100

Specification

Detail Specification AC-2100

CPU RISC 266MHz, 32bit CPU Memory 4MB Flash + 8MB SD RAM
LCD 128×64 Graphic Display LCD Max Users 100 / 1,500
Communication TCP/IP, Wiegand In/Out,
RS485, RS232, Wi-Fi(Optional)
Log Capacity 5,000
Dimension 93 X 170 X 40 mm Certificates CE, FCC, RoHS
CPU RISC 266MHz, 32bit CPU
Memory 4MB Flash + 8MB SD RAM
LCD 128×64 Graphic Display LCD
Max Users 100 / 1,500
Communication TCP/IP, Wiegand In/Out, RS485, RS232, Wi-Fi(Optional)
Log Capacity 5,000
Dimension 93 X 170 X 40 mm
Certificates CE, FCC, RoHS

Configuration

See what’s included in the AC-2100

AC-2100
